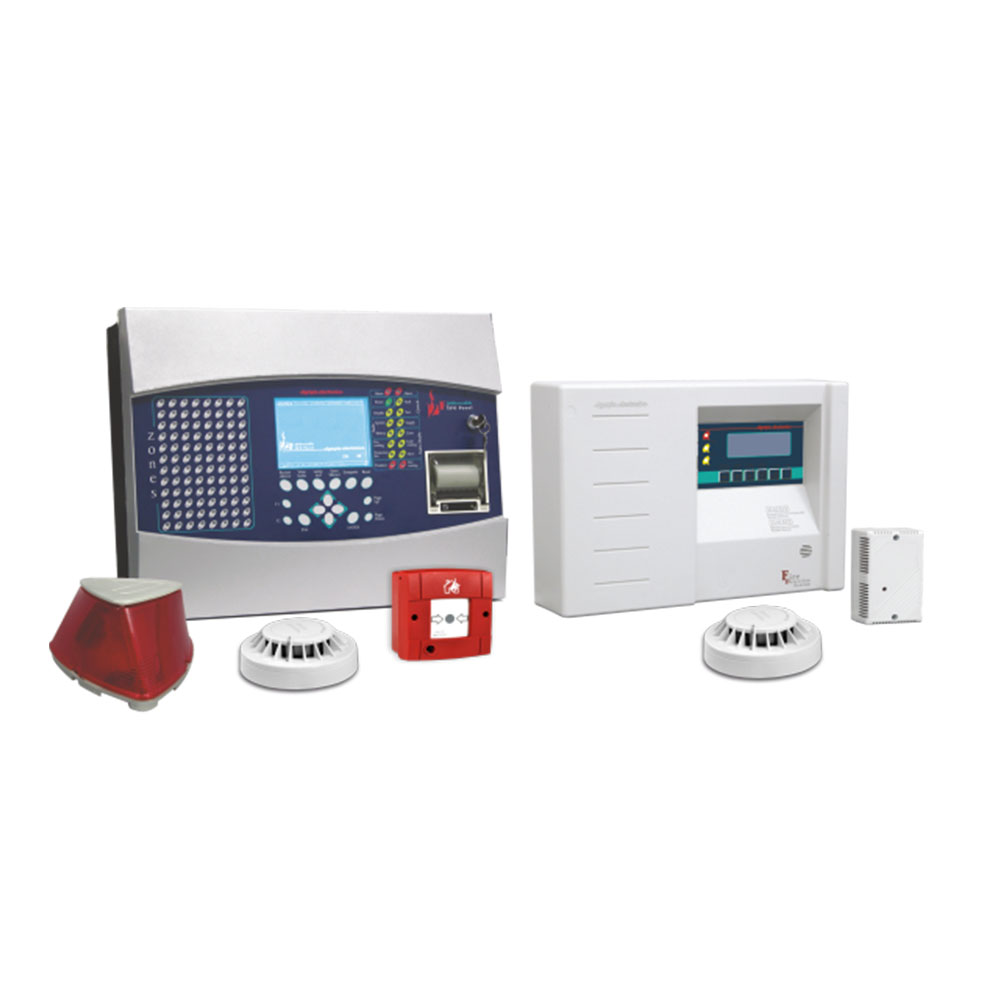

Modern Addressable Fire Alarm Panel
| Modern addressable fire alarm panel with 32, 64, or 96 zones. |
2 or 4 loops (150 points per loop). |
Suitable for large installations such as malls, hotels, factories. |
- Produced in accordance with EN54-2, EN54-4. The panels are certified by LPCB.
- 32, 64, or 96 zone capability.
- 220-240V AC mains power supply.
- It offers 2 or 4 fully monitored siren outputs with a rating of 24V / 0,5A and 6 programmable relays as well as a built-in network circuit.
- Incorporated power supply with a rating of 24V/100W and built-in battery charger for 24V batteries with a capacity of up to 12Ah.
- The panels offer an extensive list of adjustments and characteristics for the control of the installed devices and sirens. These parameters can easily be adjusted using a PC-based program.
- The programming of the panel can also be done using a PC.
- Messages can be viewed on the big LCD (320×240 pixels) whereas LEDs are used to show basic operations such as alarms, faults, and isolated sections
- The operation is done using the built-in 16 key keypads.
- There is also an incorporated safety lock and a thermal printer mounting position
