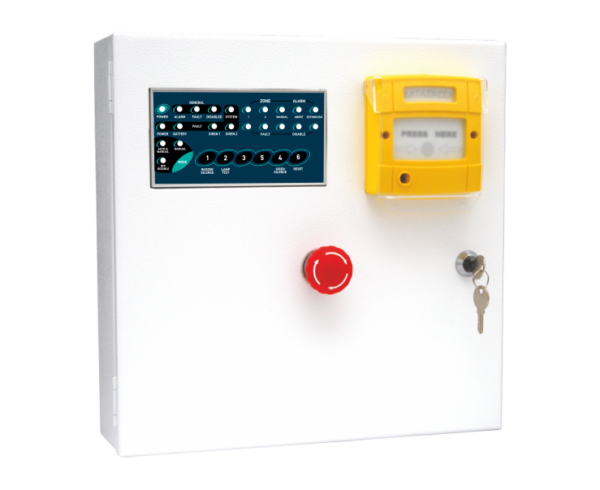

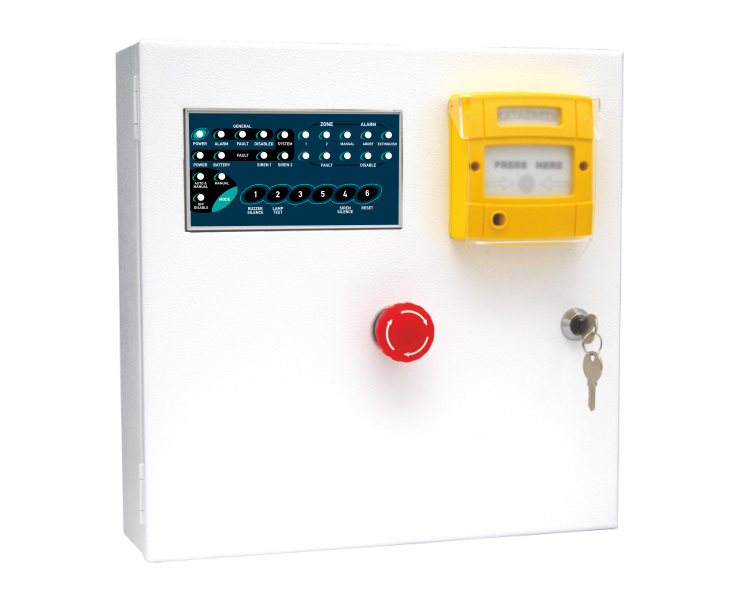

Fire Extinguishing Panel BS-627

The panel has :
– One fire extinguish output monitored for open and short circuits. The output can operate with actuators or electro valves.
-Two cross zones for fire detectors.
– One zone for a manual call point to start the extinguish procedure.
– One zone for a manual call point to cancel the extinguish procedure.
– Three  modes  of  operation
– The panel has two independent siren outputs.
– One contact relay for fault status.
– Two fully programable relay contacts.
 -Terminals to communicate with conventional fire detection panels.
The battery Α-986 (12V/7Ah) is required for the operation of the panel.
 All functions and indications  are  according  to  European  Norms ΕΝ 12094-1
