Analogue Addressable Beam Detectors

BS-230, BS-232, BS-240, BS-242.New remote-adjusted beam detectors 8-50m and 8-100m.
Up to 4 detections devices per control unit.
Alignment and focus of the detection heads from the control unit (manual or automatic)

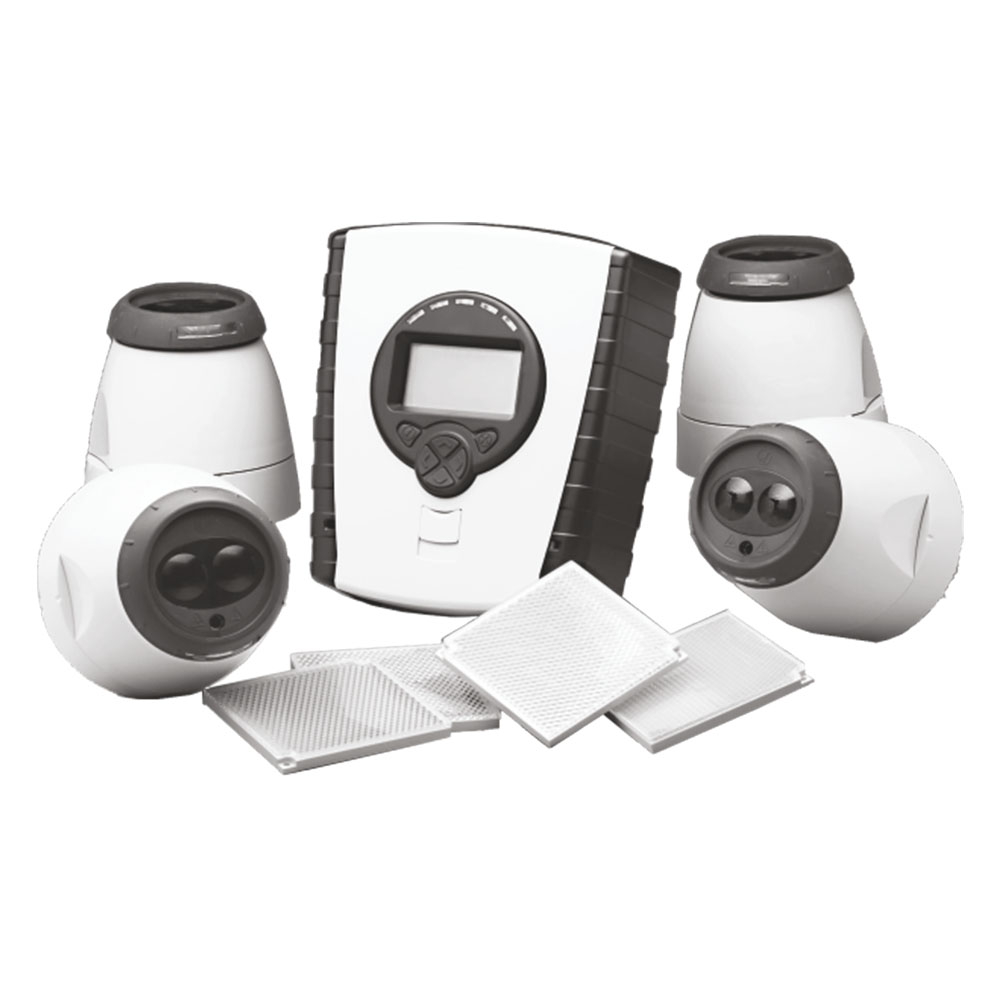

The BS-230, BS-240 are state of the art in the field of beam detectors. They consist of the controller, the detector and the mirror (1 or 4). The controller can manage up to 4 detectors thus making the installation more economical.
The detectors (detection heads) have a motor for movement on the horizontal and vertical axis and a laser transceiver. With these parts, they can be adjusted manually or automatically from a distance during the installation phase.

Description

Type	Description	Consumption	Sensibility
BS-230*	50m beam detector with controller, detection head and 1 mirror	10mA	25, 35, 50%, Obscuration
BS-232*	Detection head and 1 mirror	2mA	25, 35, 50%, Obscuration
BS-240*	100m beam detector with controller, detection head and 1 mirror	10mA	25, 35, 50%, Obscuration
BS-242*	Detection head and 4 mirrors	2mA	25, 35, 50%, Obscuration
